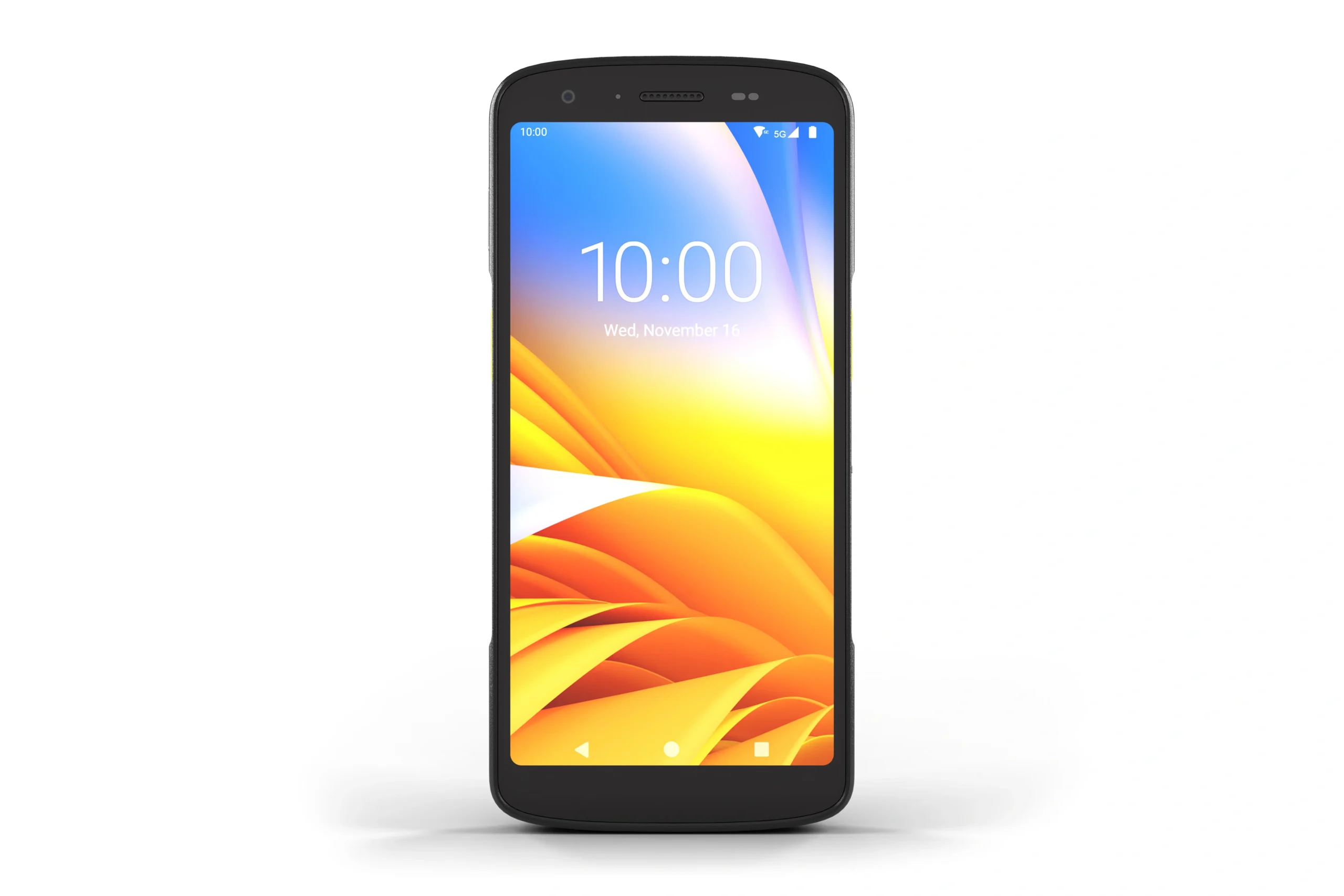

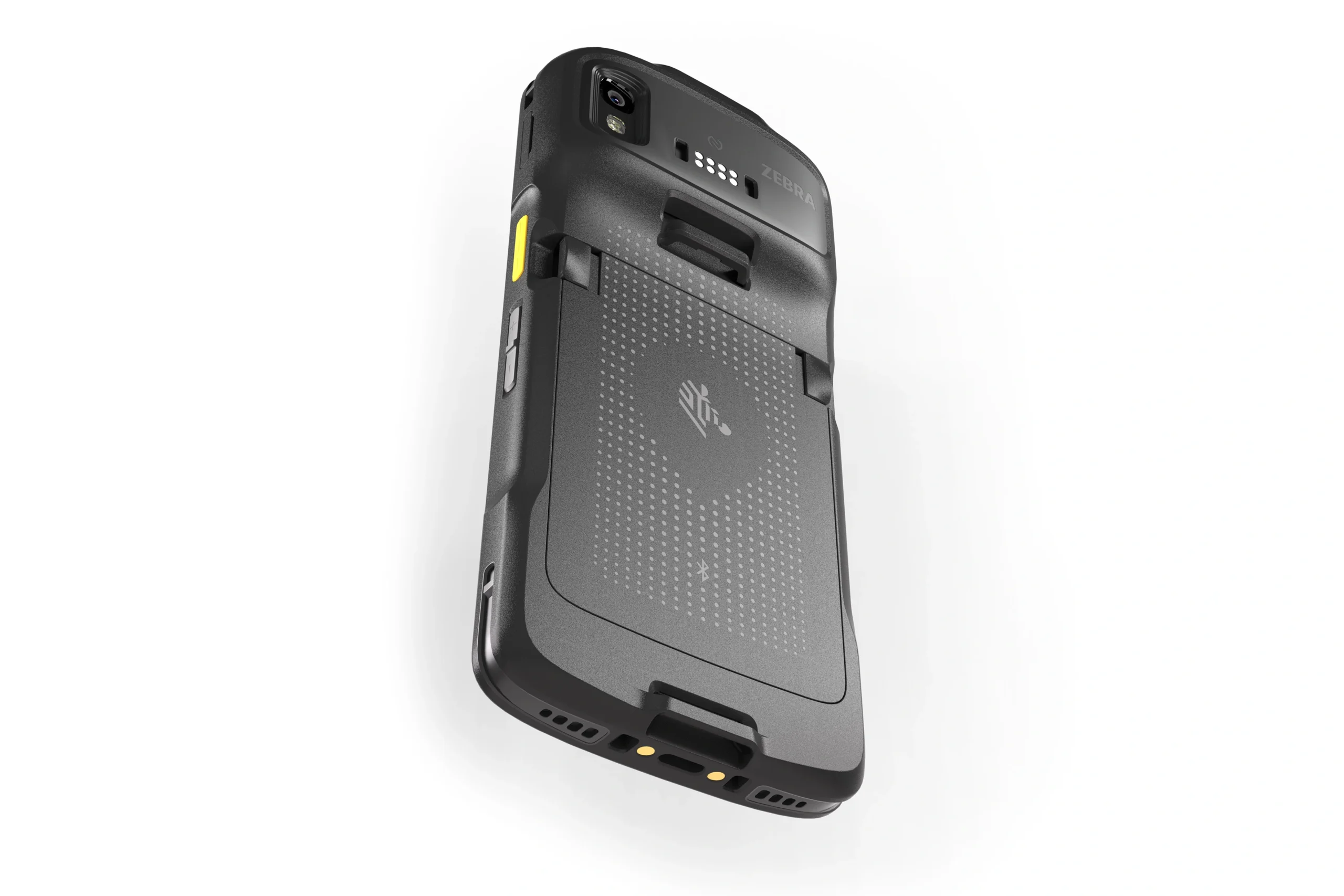

Zebra TC27 – 6GB/64GB, 6″ Hand Held Mobile Computer

In stock

The ultimate cost-effective tool for small businesses — with big business features

In the Box
TC27 Mobile Computer

Key Features
Screen Size: 6 inches (15.2 cm)
Connectivity: 5G, 5G private network, CBRS (US only), Wi-Fi 6E, Bluetooth 5.2
Memory: 6 GB RAM/64 GB Flash, 8 GB RAM/128 GB Flash
Operating System: Android, for supported versions visit: www.zebra.com/android-versions
Battery Capacity: standards: 14.63 Wh (3,800 mAh), Extended: 20.02 Wh (5,200 mAh), BLE: 14.63 Wh (3,800 mAh)

Specifications

Physical Characteristics

Dimensions	6.5 in. L x 3.0 in. W x 0.49 in. D 165 mm L x 76.3 mm W x 12.5 mm D
Weight	8.32 oz/236 g (TC22 3800mAh battery) 9.24 oz/262 g with 5200mAh battery
Display	6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 Nits; Corning™ Gorilla™ Glass
Imager Window	Corning™ Gorilla™ Glass
Touch Panel	Multi mode capacitive touch with bare or light gloved fingertip input
Power	User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; BLE battery: 3800 mAh/14.63Wh
Expansion Slot	User accessible MicroSD card supports up to 2 TB
SIM	TC27 only: 1 Nano SIM and 1 eSIM (except China)
Network Connections	TC22: WLAN, WPAN; TC27: WWAN, WLAN, WPAN
Notifications	Audible tone; multi-color LEDs; vibration
Keypad	On-screen keypad
Audio	Two microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; HD Voice, including Super-wideband (SWB), Wideband (WB) and Fullband (FB)
Buttons	Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Interface Ports	USB 3.1 (Bottom Type C)—Super Speed (host and client); 2-pin or 8-pin rear connector

Performance Characteristics

CPU	Qualcomm™ 5430 hex-core, 2.1 GHz
Operating System	Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory	6 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash

User Environment

Operating Temp.	14°F to 122°F/-10°C to 50°C
Storage Temp.	-40°F to 158°F/-40°C to 70°C
Humidity	5% – 95% non-condensing
Drop Spec.	Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H
Tumble Spec.	500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Sealing	IP68 and IP65, with battery per applicable IEC sealing specifications
Electrostatic Discharge (ESD)	+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Interactive Sensor Technology (IST)

Light Sensor	Automatically adjusts display backlight brightness
Motion Sensor	3-axis accelerometer with MEMS Gyro
Proximity Sensor	Automatically detects when the user places the handset against head during a phone call to disable display output and touch input.
Magnetometer	eCompass to detect direction
Pressure Sensor	Altitude for locating (TC27 North America only)

Data Capture

Scanning	SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4710 1D/2D Scan Engine
Camera	Rear camera 16 MP; front camera 5 MP
NFC	NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK
UHF RFID	RFD40 UHF RFID Sled; RFD90 Ultra-Rugged UHF RFID Sled

Wireless WAN Data and Voice Communications (TC27)

Radio Frequency Band

North America: 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78;
4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/
48/66/71; 3G: B2/4/5; Rest of World: 5G FR1¹¹: n1/2/3/5/7/8/20/28/38/40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/13/17/20/28/38/39/40/41/42/
43/66/71; 3G: 1/2/4/5/8; 2G: 850/900/1800/
1900; China/Japan: 5G FR1: n1/3/5/7/8/28/38/
40/41/77/78/79; 4G: B1/3/5/7/8/19/18/26/28/
34/38/39/40/41/42; 3G: B1/5/6/8/19; 2G: 850/
900/1800; Dual SIM/Dual Standby, VoLTE,
Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR
Carrier Aggregation, supports private
networking (LTE/5G)
Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.

GPS

GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA

Wireless LAN

WLAN Radio	IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2×2 MU-MIMO, Wi-Fi 6E (802.11ax), Wi-Fi™ certified; Wi-Fi™ 6 Certified, Dual Band Simultaneous; IPv4, IPv6
Data Rates	6 GHz: 802.11ax—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2402 Mbps 5 GHz: 802.11a/n/ac/ax—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax—20 MHz up to 286.8 Mbps
Operating Channels	Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Fast Roam	PMKID caching; Cisco CCKM; 802.11r; OKC
Security and Encryption	WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) – EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) – EAP-TLS; TC27 WWAN models only: WPA3 Enterprise EAP-SIM, EAP-AKA, EAP-AKA Prime
Certifications	Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE

Wireless PAN

Bluetooth

Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery

Ask a Question

Category:Handheld Mobile Computers

The TC27 is a durable, 5G-enabled device designed for fieldwork. Couriers can capture high-resolution photos for delivery proof and handle on-site payments. Repair technicians can scan parts, make 5G video calls for remote support, and process payments upon service completion. With digital wallet compatibility, the TC27 is versatile for various settings like stadiums, parks, and transit, making it ideal for access control and mobile payments.

Commonly Used For
Courier and Delivery
Staff Communications
Access Control
Proof of Pickup and Delivery
Ticketing
