The ultimate cost-effective tool for small businesses — with big business features
Key Features
Screen Size: 4 inches (10.2 cm)
Connectivity: Wi-Fi (WLAN), Bluetooth (WPAN)
Memory: 4 GB RAM/32 GB Flash pSLC
Operating System: Upgradeable to Android™ 14
Battery Capacity: 7,000 mAh
Physical Characteristics
| Dimensions | 9.17 in. L x 2.99 in. W x 2.52 in. D 233 mm L x 76 mm W x 64 mm D |
| Weight | Base: 17.2 oz./490 g; Package 1: 17.6 oz./500 g |
| Display | 800 x 480 pixels; 4.0 in. diagonal; transflective LCD display; 16.7 Million (24-bit) color support; 400 NITs |
| Touch Panel | Multi-touch projected capacitive; fingertip (bare or gloved) input; conductive stylus supported (sold separately); Corning™ Gorilla™ Glass |
| Power | PowerPrecision+ Lithium ion 7000 mAh with hot swap battery backup |
| Notifications | Audible tone, multi-color LEDs, vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Dual speakers, Bluetooth wireless headset support |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | Base, Condensation Resistant, DPM and Package 1 models: 4 GB RAM/32 GB Flash pSLC |
| Storage | SDXC compliant micro SD card slot |
| App Development | EMDK available through Zebra Support Central Web site |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% – 95% non condensing (condensing resistant optional) |
| Drop Spec. | Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G ; multiple 6 ft./1.8 m drop to concrete across full operating temperature range |
| Tumble Spec. | 2,000 3.3 ft./1 m tumbles |
| Sealing | IP65 |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz) |
| Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition |
| Scanner Window | Corning™ Gorilla™ Glass |
| Electrostatic Discharge (ESD) | ±20kVdc air discharge; ±10kVdc direct discharge; ±10kVdc indirect discharge |
Data Capture
| Scanning Options | SE4750: 1D/2D medium range omnidirectional imager SE4770: 1D/2D standard range omnidirectional imager SE4750 DPM: Direct Part Mark (DPM) imager SE4850: 1D/2D extended range imager |
| Camera | 13 MP rear facing autofocus, f/2.4 aperture (optional) |
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support (optional) |
Zebra Interactive Sensor Technology
| Light Sensor | Automatically adjusts display backlight |
| Motion Sensor | 3-axis accelerometer, 3-axis gyroscope |
| Proximity | Sensor for automatic hands-free scanning; magnetic sensor to detect insertion in a cart mount or holster |

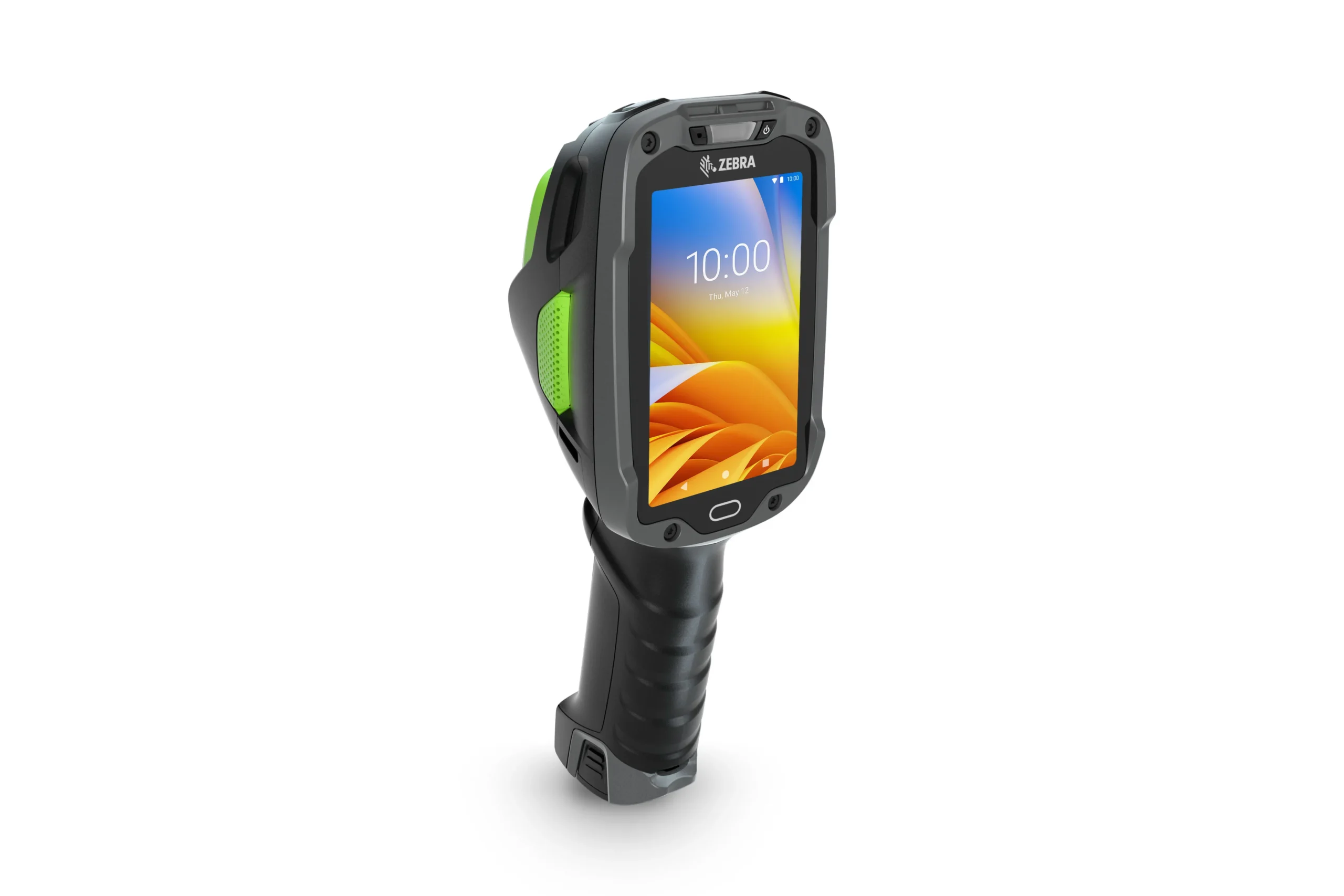

The TC8300 improves on Zebra’s revolutionary enterprise touch computer design, offering lightning-fast Android performance, enhanced data capture, and unmatched user experience. With powerful Zebra DNA apps and ergonomic design, it’s the next evolution in warehouse management and enterprise mobility.
Commonly Used For
Shipping and Receiving
Track and Trace
Sorting
Cold Chain Management
Inventory Management
