ZEBRA ZT610 RFID Industrial Printer - 4-inch, High Performance

ZEBRA ZT610 RFID Industrial Printer – 4-inch, High Performance

In stock

Strong, smart and scalable RFID encoding

Key Features
Print Technology: Direct Thermal, Thermal Transfer Roll
Print Speed: 14 ips (356 mm/s)
Connectivity: Bluetooth 4.0, Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional), Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional)

Specifications

RFID

Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradeable in the field and available on both 4 in. and 6 in. models
Adaptive Encoding Technology automatically selects optimum encode settings
Supports industry standard, multi-vendor, chip-based serialization
Supports block permalocking of user memory compatible with ATA Spec 2000
Allows users to track performance with RFID job-monitoring tools

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

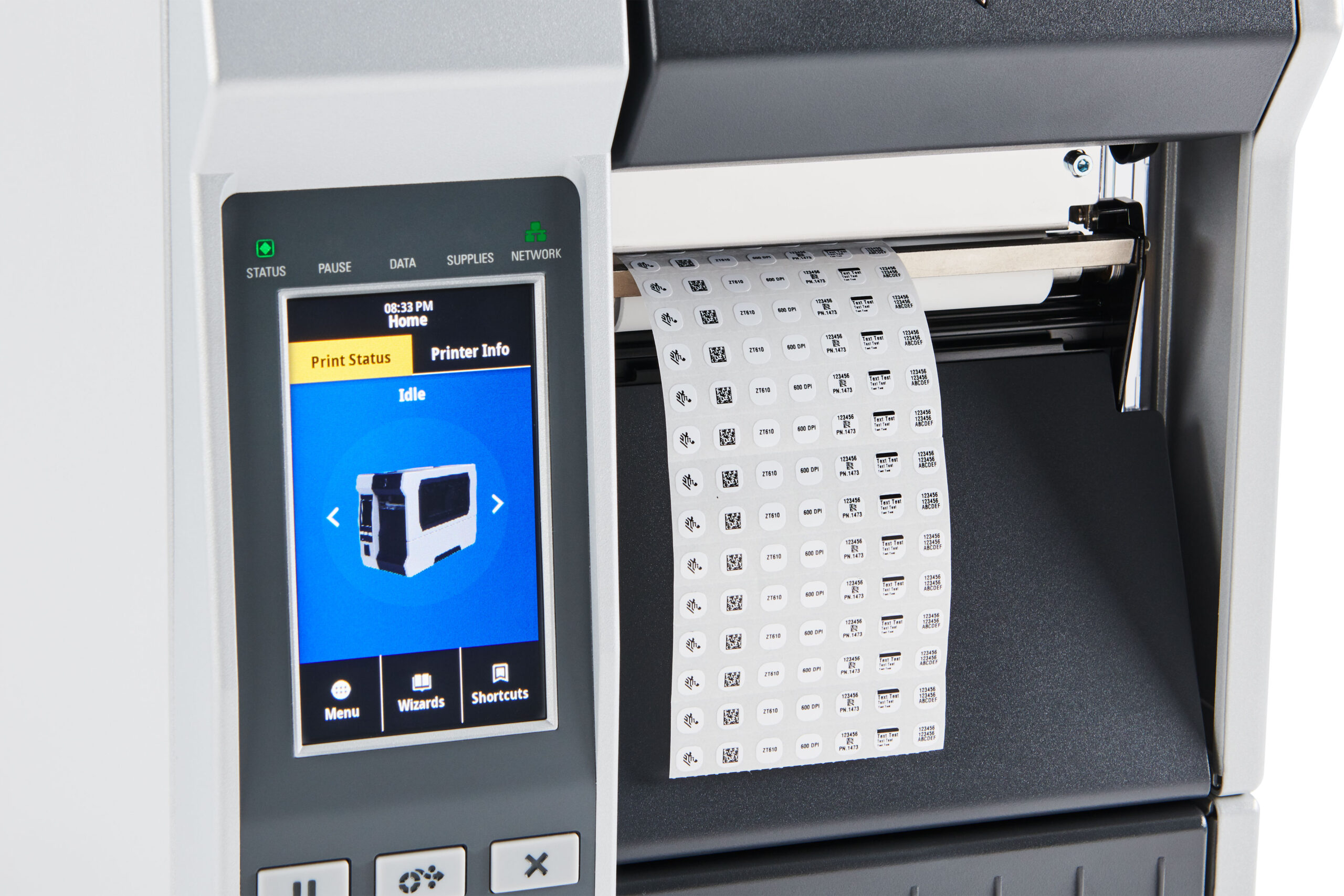

4.3 in. color touch display with intuitive menu for quick operation and settings management

Physical Characteristics

Dimensions (closed)	ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H 505 mm L x 268.2 mm W x 395.68 mm H ZT620: 19.88 in. L x 13.44 in. W x 15.58 in. H 505 mm L x 341.45 mm W x 395.68 mm H
Weight	ZT610: 50 lbs/22.7 kg ZT620: 57.4 lbs/26 kg

Printer Specifications

Operating System	Link-OS
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only)
Memory	1 GB RAM memory 2 GB on-board linear Flash memory
Maximum Print Width	ZT610: 4.09 in./104 mm ZT620: 6.6 in./168 mm
Maximum Print Speed	ZT610: 14 ips/356 mm per second ZT620: 12 ips/305 mm per second
Media Sensors	Dual media sensors: transmissive and reflective
Maximum Continuous Print Length	ZT610: 203 dpi: 150 in./3810 mm 300 dpi: 130 in./3302 mm 600 dpi: 30 in./762 mm ZT620: 203 dpi: 150 in./3810 mm 300 dpi: 100 in./2540 mm

Media Characteristics

Media Width	ZT610: • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind ZT620: • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Maximum Media Roll Size	8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness	0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length	1476 ft./450 m
Width	ZT610: 2.00 in./51 mm to 4.33 in./110 mm ZT620: 2.00 in./51 mm to 6.85 in./174 mm
Core	1.0 in./25.4 mm I.D.

Ask a Question

Category:Industrial Printers

The Zebra ZT610 RFID Industrial Printer (ZT61042-T0E01C0Z) delivers industrial-grade 4-inch thermal transfer and direct thermal printing with advanced RFID encoding. Featuring 203 dpi, 300 dpi, or 600 dpi resolution, color touchscreen display, real-time clock, and versatile connectivity, it ensures precise, reliable labeling for manufacturing, logistics, and warehousing environments.

With integrated UHF RFID capabilities, the ZT610 enables businesses to encode and print labels and tags with exceptional accuracy, enhancing asset tracking, inventory management, and supply chain visibility. Its rugged metal design, intuitive touchscreen interface, and flexible connectivity options provide long-term reliability and operational efficiency.

Experience industrial-grade performance with the Zebra ZT610 RFID industrial printer (ZT61042-T0E01C0Z). 4-inch (104 mm) thermal transfer and direct thermal printing at 203 dpi, with 1 GB RAM, 2 GB Flash, color touchscreen, real-time clock, and advanced connectivity (USB, RS232, Bluetooth, Ethernet). Ideal for asset tracking, inventory, and shipping labels.
