In the Box

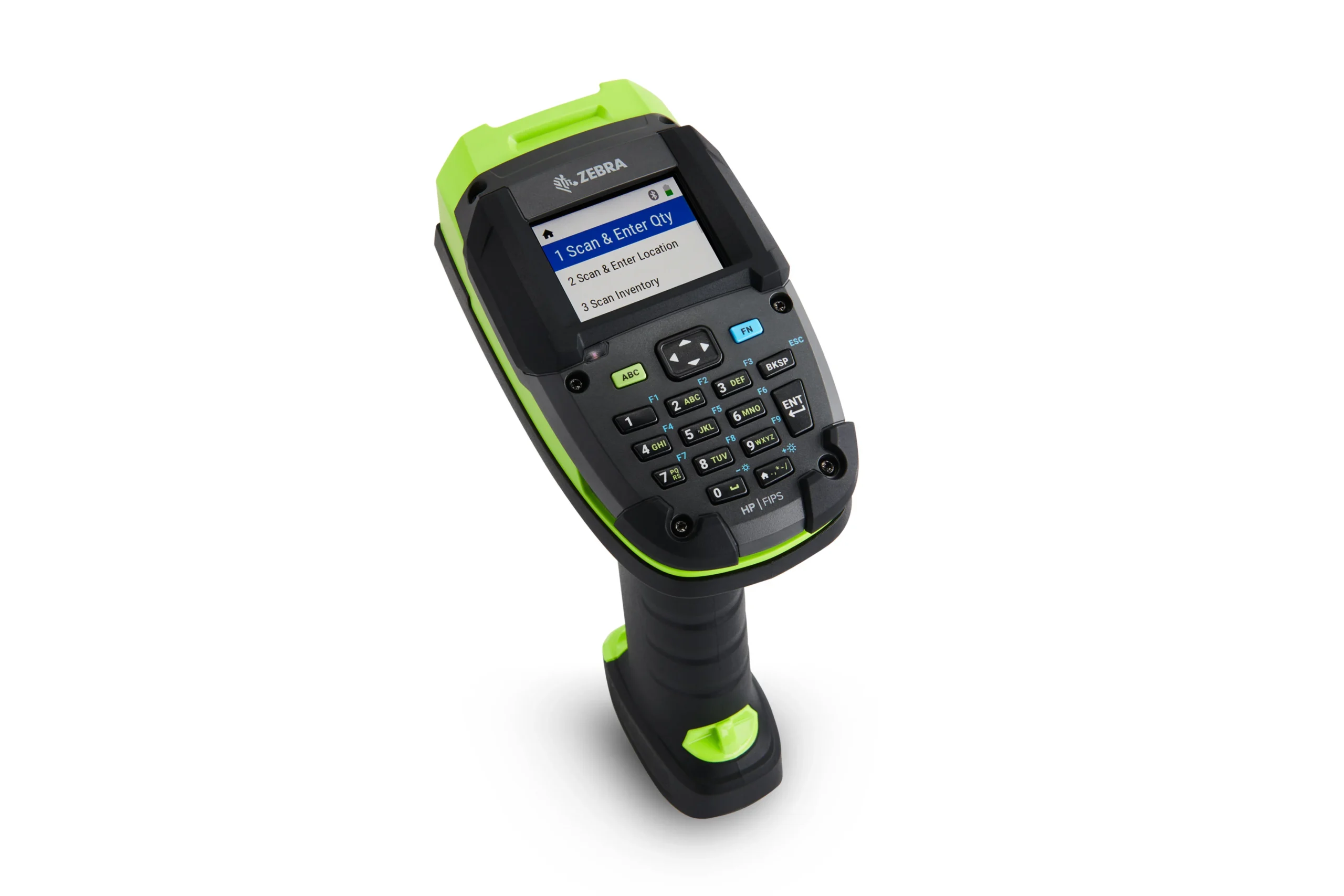

DS3678-KD Ultra-rugged handheld scanner
USB cable

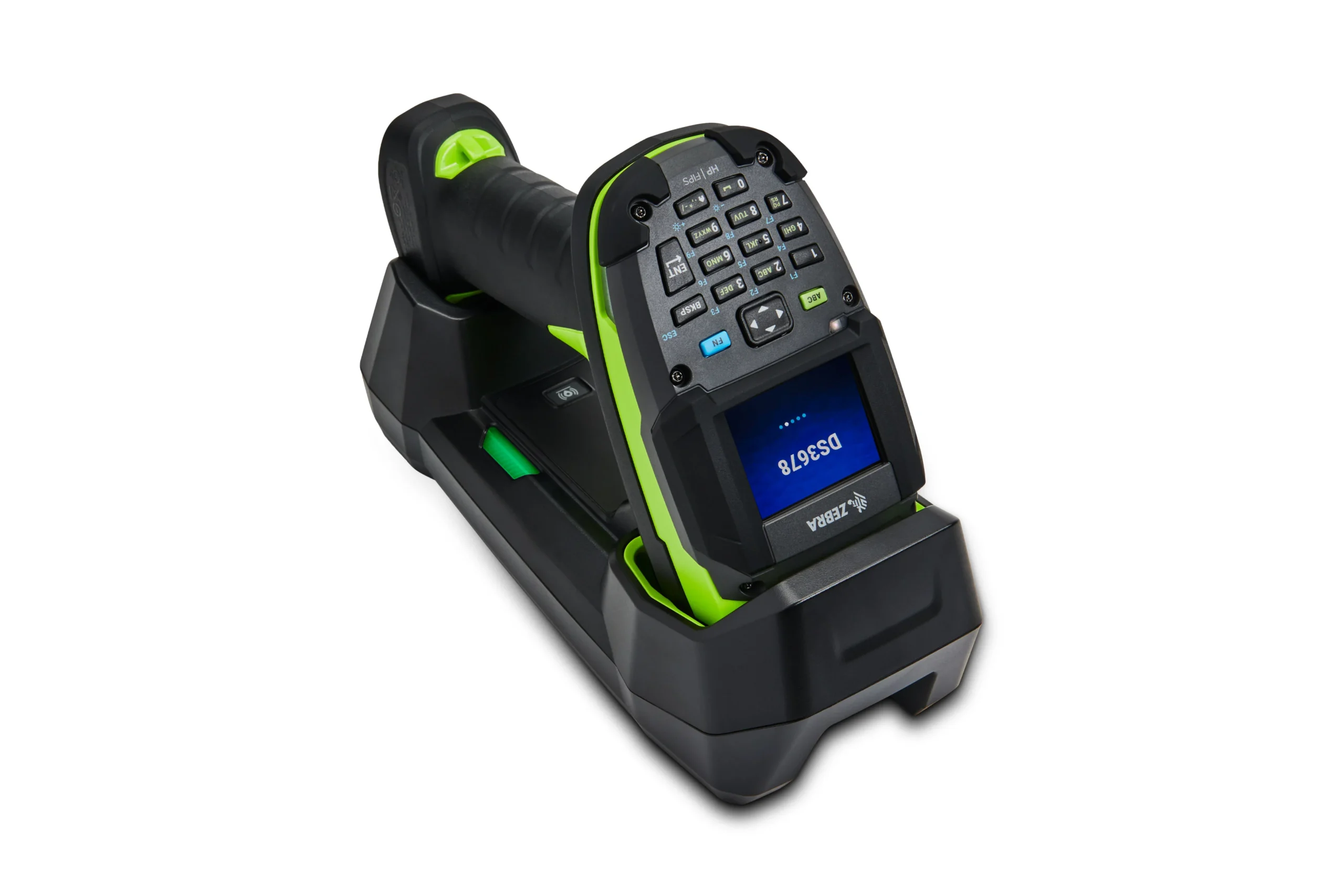

Standard cradle (cordless model)
Power supply (cordless model)
DC line cord (cordless model)
Key Features
Scan Type: 2D, 1D
Image Sensor: 1280×960 pixels
Scan Range: Mid-Range
Corded/Cordless: Cordless
Battery Capacity: 16 hours (3,100 mAh)
Physical Characteristics
| Dimensions | 7.5 in. H x 3.1 in. W x 5.6 in. D 19 cm H x 7.8 cm W x 14.3 cm D |
| Weight | 18 oz./510 g (includes battery pack) |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Color | Industrial Green |
| Display | 2.0 in. QVGA (320 x 240) color display; Corning Gorilla Glass |
| Backlight | LED backlit display |
| Keypad | Backlit 19-key alpha-numeric, with blue and green shift-key functions |
| Ambient Light Sensor | Automatically adjusts display and keypad backlight brightness |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP and Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics
| Scans per Full Charge | 60,000+ |
| Illumination | Two (2) warm white light LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | Horizontal: 31°, Vertical: 23° |
| Image Sensor | 1,280 x 960 pixels |
| Min. Print Contrast | 15% minimum reflective difference |
| Skew/Pitch Roll Tolerance | +/- 60°; +/- 60°; 0-360° |
Decode Capabilities3
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| OCR | OCR-A/B, MICR-E13B, US Currency Serial Number |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
User Environment
| Operating Temperature | -4° F to 122° F/-20° C to 50° C |
| Storage Temperature | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature
Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Environmental Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65 |
| Electrostatic Discharge (ESD) | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
Wireless Connectivity
| Bluetooth RadioBluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
Designed for capture of 1D/2D barcodes, OCR, photos, and documents with the versatility of a keypad and colour display. A suite of pre-built applications makes it easy to tackle tasks, including the ability to add quantity and location data to any scanned item.
Commonly Used For
Picking and Packing
Cross Docking
Inventory Management
Work in Progress
Point-of-Sale
