In the Box

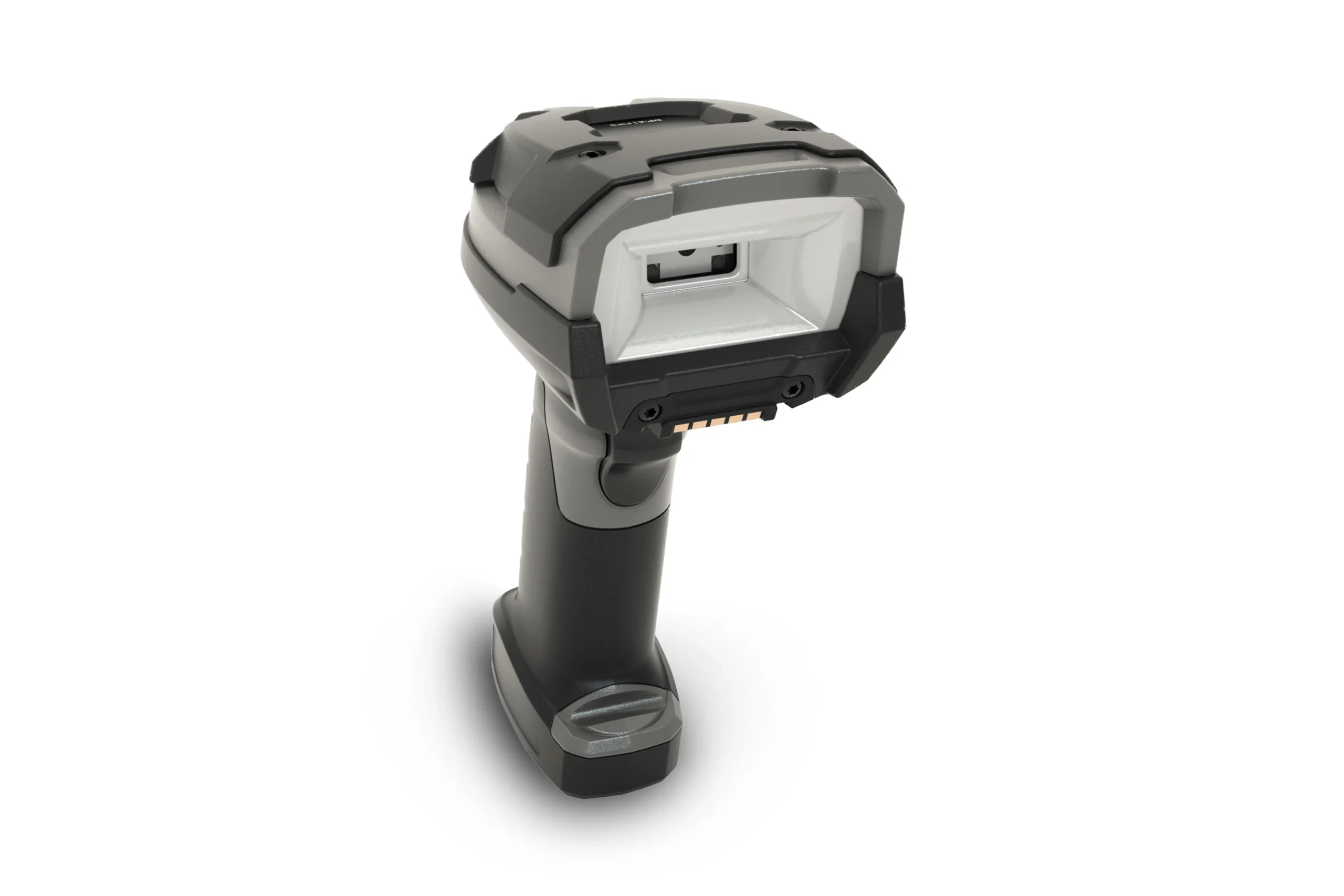

DS3678-DPA Ultra-rugged handheld scanner
USB cable

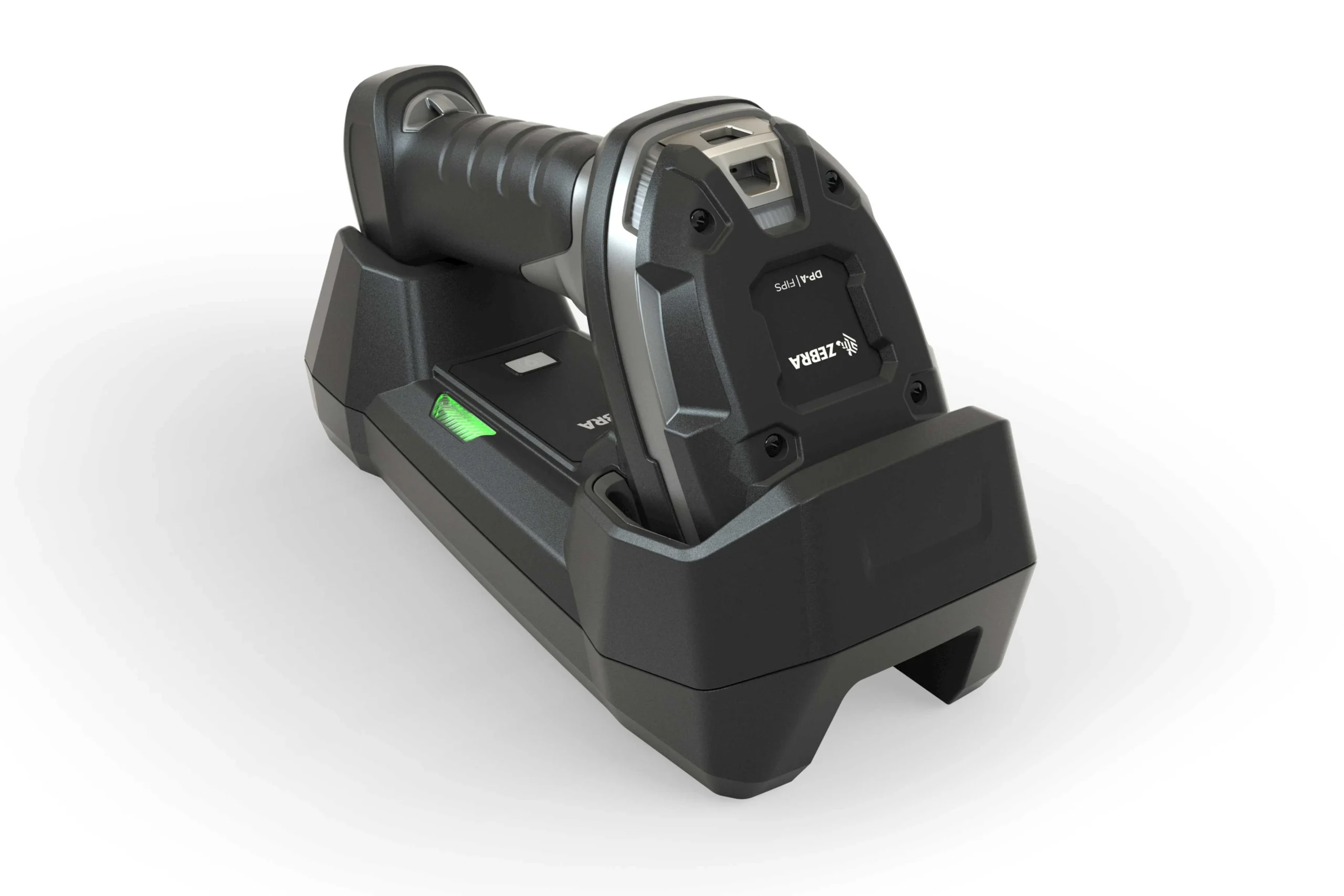

Standard cradle (cordless model)
Power supply (cordless model)
DC line cord (cordless model)
Key Features
Scan Type: 2D, 1D
Image Sensor: 1280×960 pixels
Scan Range: Direct Part Marks
Corded/Cordless: Corded, Cordless
Battery Capacity: 3,100 mAh
Physical Characteristics
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.7 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.3 cm D |
| Weight | Corded: 10.72 oz./304 g Cordless: 14.18 oz./402 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | DS3608-DPA (corded): 360 mA (RMS typical) |
| Standby Current | DS3608-DPA (corded): 100 mA (RMS typical) |
| Color | Gray and Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics
| Scans per Full Charge | 100,000+ |
| Image Capture | Basic |
| Illumination | Direct: Two (2) warm white light LED; Diffuse: Ring of red 634 nm LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | Horizontal: 46°, Vertical: 30° |
| Image Sensor | 1,280 x 960 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 60° Pitch: ± 60° Roll: ± 360° |
Decode Capabilities2
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
User Environment
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
Wireless Connectivity
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
Designed to capture Direct Part Marks (DPM), 1D/2D and wide 1D barcodes common in factory automation, aeronautics, and automotive manufacturing, where end-to-end traceability of all components is required.
Commonly Used For
Maintenance Management
Product Authentication
Quality Assurance
Lifetime Identification UID
Track and Trace
