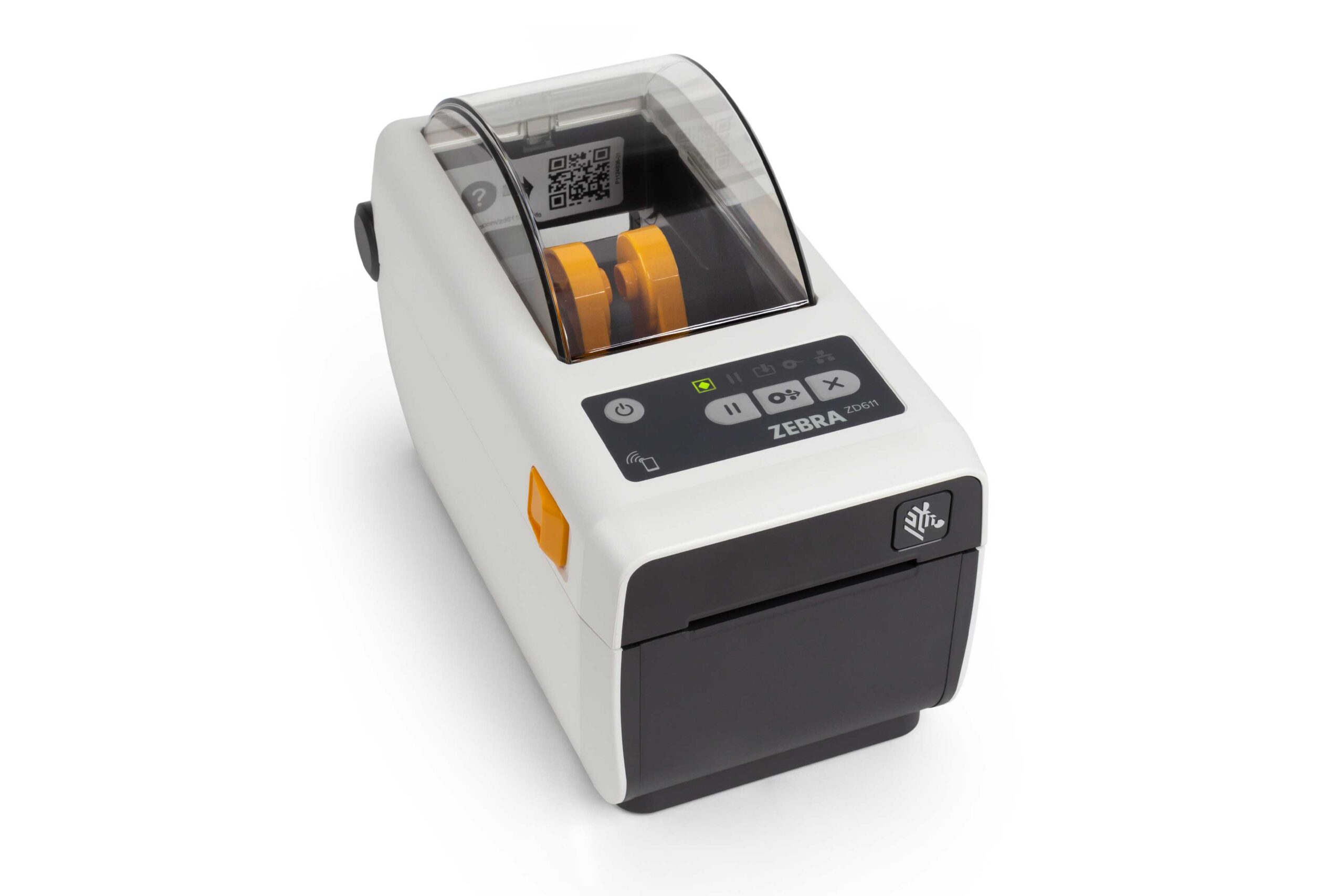

Zebra ZD611-HC Premium Desktop 2-inch Wide Healthcare

In stock

Compact, premium for healthcare printing

In the Box
Printer
IEC 60601-1 compliant
Power supply and power cord
USB cable
Quick start guide

Key Features
Print Technology: Direct Thermal, Thermal Transfer Roll
Print Speed: 6 ips (152 mm/s), 8 ips (203 mm/s)
Print Resolution: 203 dpi (8 dot/mm), 300 dpi (12 dot/mm)
Connectivity: Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional), Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional), Bluetooth Low Energy

Specifications

Healthcare Features

• Healthcare preferred white color scheme
• Healthcare compliant power supply, IEC 60601-1 certified
• Disinfectant-ready, easy-to-clean plastics with sealed button interface
• UV-resistant housing supports UV cleaning protocols

Standard Features

• Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• 4.3 in. full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface (thermal transfer model)
• 5 status icon, 3 button user interface (direct thermal model)
• Ethernet, USB 2.0, USB Host
• Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• Media dancer for excellent print quality (thermal transfer model)
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR™ certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner

Physical Characteristics

Dimensions

ZD611d-HC:
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H

ZD611t-HC:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H

Weight

ZD611d-HC: 2.36 lb./1.07 kg
ZD611t-HC: 3.59 lb./1.629 kg

Printer Specifications

Operating System	Link-OS™ printer operating system
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory	512 MB Flash; 256 MB SDRAM
Maximum Print Width	2.2 in./56 mm for 203 dpi 2.13 in./54 mm for 300 dpi
Maximum Print Speed	8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware	ZPL II; EPL 2; XML; ZBI; PDF Direct

Media and Ribbon Characteristics

Label Length	Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm
Media Width	Minimum: 0.585 in./15 mm Maximum: 2.36 in./60 mm
Media Roll Size	Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness	0.0024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear off mode only)
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter	1.34 in./34 mm (74 m)
Ribbon Standard Length	243 ft./74 m
Ribbon Ratio	1:1 ribbon to media
Ribbon Width	1.3 in./33 mm – 2.24 in./58 mm
Ribbon Core I.D.	0.5 in./12.7 mm

Operating Characteristics

Operating Temp.	40° to 105° F/4.4° to 41° C
Storage Temp.	-40° to 140° F/-40° to 60° C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Electrical	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Ask a Question

Category:Desktop Printers

The ZD611-HC 2-inch printers, designed for healthcare, feature disinfectant-ready plastics, UV-resistant housing and a sealed-button interface for easy cleaning. A medical-grade Power supply that’s IEC 60601-01 compliant for years of safe, reliable performance. Enjoy peace-of-mind with Zebra’s unmatched printer security to help safeguard sensitive data, including patient information. Add a battery pack for printing on the go.
