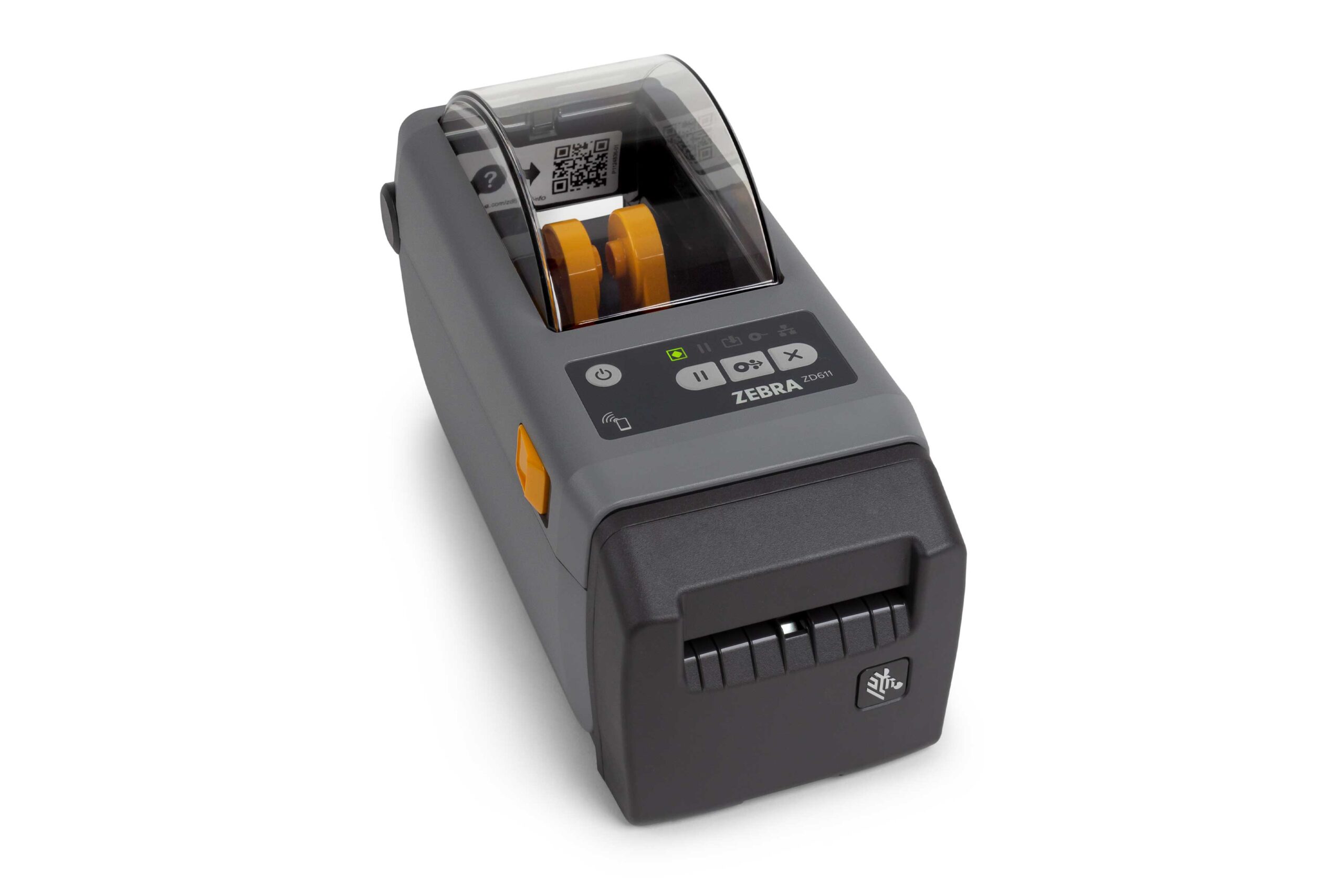

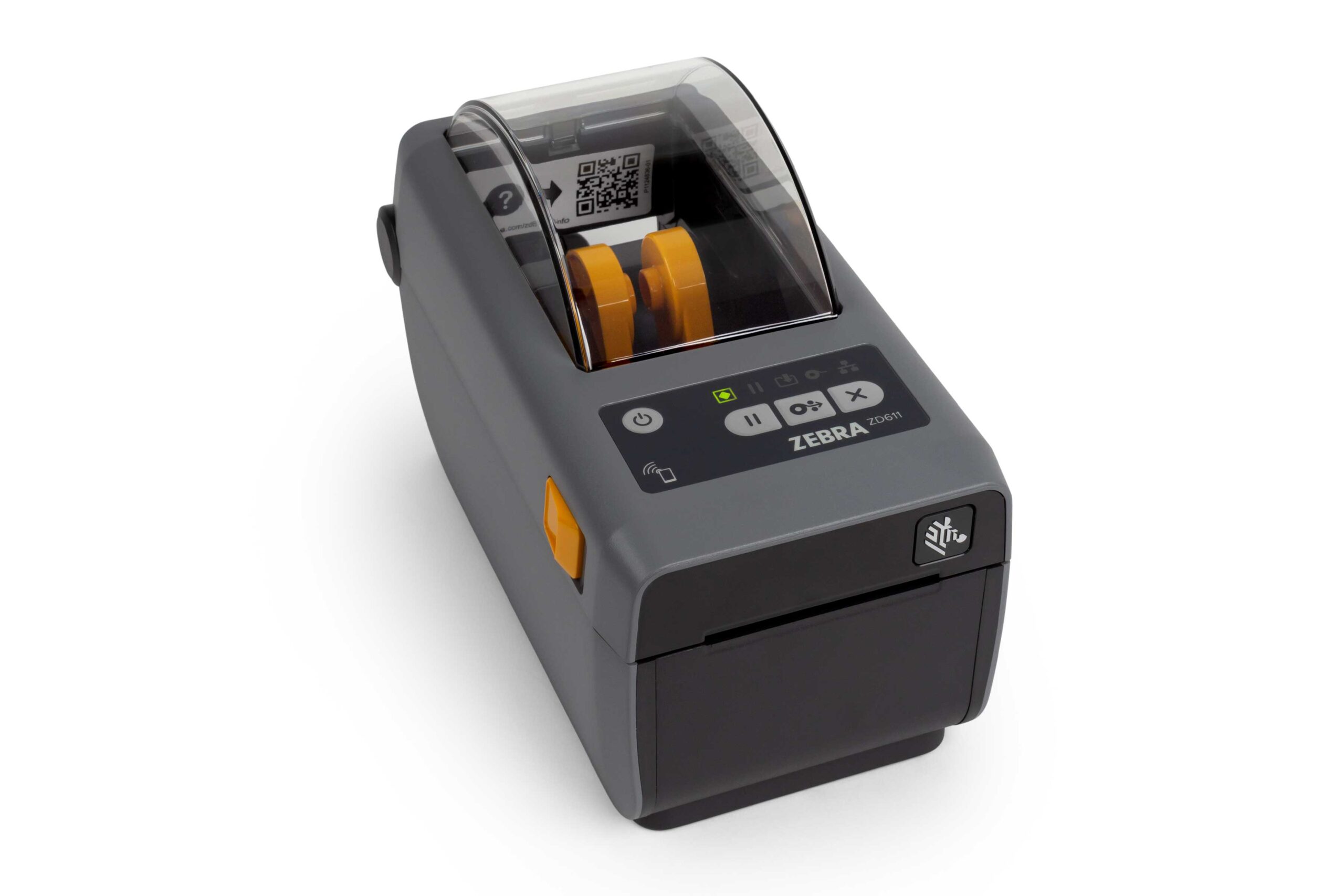

Zebra ZD611 Premium Desktop 2-inch Wide

In stock

2-inch printing, premium quality

In the Box
Printer
Power supply and power cord
USB cable
Quick start guide
Empty ribbon take-up core (thermal transfer only)

Key Features
Print Technology: Direct Thermal, Thermal Transfer Roll
Print Speed: 6 ips (152 mm/s), 8 ips (203 mm/s)
Print Resolution: 203 dpi (8 dot/mm), 300 dpi (12 dot/mm)
Connectivity: Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional), Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional), Bluetooth Low Energy

Specifications

Standard Features

Print methods: Thermal Transfer or Direct Thermal
ZPL and EPL programming languages
5 status icon, 3 button user interface
Ethernet, USB 2.0, USB Host
Serial (ZD621 only)
Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
Real Time Clock (RTC)
Media dancer for excellent print quality (excludes ZD611 direct thermal model)
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
ZebraDesigner Essentials–easy label design tool free at
www.zebra.com/zebradesigner

Physical Characteristics

Dimensions	ZD611 Direct Thermal: 8.6 in. L x 4.5 in. W x 6.0 in. H 220 mm L x 115 mm W x 151 mm H ZD611 Thermal Transfer: 9.56 in. L x 5.46 in. W x 6.66 in. H 242.9 mm L x 138.7 mm W x 169.2 mm H ZD621 Direct Thermal: 8.7 in. L x 7.0 in. W x 5.9 in. H 221 mm L x 177 mm W x 151 mm H ZD621 Thermal Transfer: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H
Weight	ZD611 Direct Thermal: 2.36 lb./1.07 kg ZD611 Thermal Transfer: 3.59 lb./1.629 kg ZD621 Direct Thermal: 3.6 lb./1.6 kg ZD621 Thermal Transfer: 5.5 lb./2.5 kg

Printer Specifications

Operating System	Link-OS
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory	512 MB Flash; 256 MB SDRAM
Maximum Print Width	ZD611: 2.2 in./56 mm for 203 dpi 2.13 in./54 mm for 300 dpi ZD621: 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi
Maximum Print Speed	8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Programming Languages	ZPL II; EPL 2; XML; ZBI; PDF Direct

Media and Ribbon Characteristics

Label Length	Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm
Media Width	ZD611: 0.585 in./15 mm to 2.36 in./60 mm ZD621 Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm ZD621 Thermal Transfer: 0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size	Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1 mm, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness	ZD611: 0.024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only) ZD621: 0.003 in./0.08 mm min.; 0.0075 in./0.19 mm max. (tear-off mode only)
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, and linerless* * For use only with linerless printer model
Ribbon Outside Diameter	ZD611: 1.34 in./34 mm (74 m) ZD621: 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length	ZD611: 243 ft./74m ZD621: 984 ft./300 m; 243 ft./74m
Ribbon Ratio	1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m)
Ribbon Width	ZD611: 1.3 in./33 mm to 2.24 in./58 mm ZD621: 1.33 in./33.8 mm to 4.3 in./109.2 mm
Ribbon Core I.D.	1 in./25.4 mm (300 m) 0.5 in./12.7 mm (74 m)

Operating Characteristics

Operating Temperature	40° to 105° F/4.4° to 41 °C
Storage Temperature	-40° to 140° F/-40° to 60 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Electrical	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Options and Accessories

Healthcare	Our healthcare models include white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics, sealed button interface and UV-resistant housing
RFID	Available in RFID, supports UHF EPC Gen 2 V2.1 and RAIN RFID protocols, uses Adaptive Encoding Technology and Zebra’s RE40 RFID Reader/Encoder
Linerless	For use with Zebra ZeroLiner labels; direct thermal only; cutter or tear

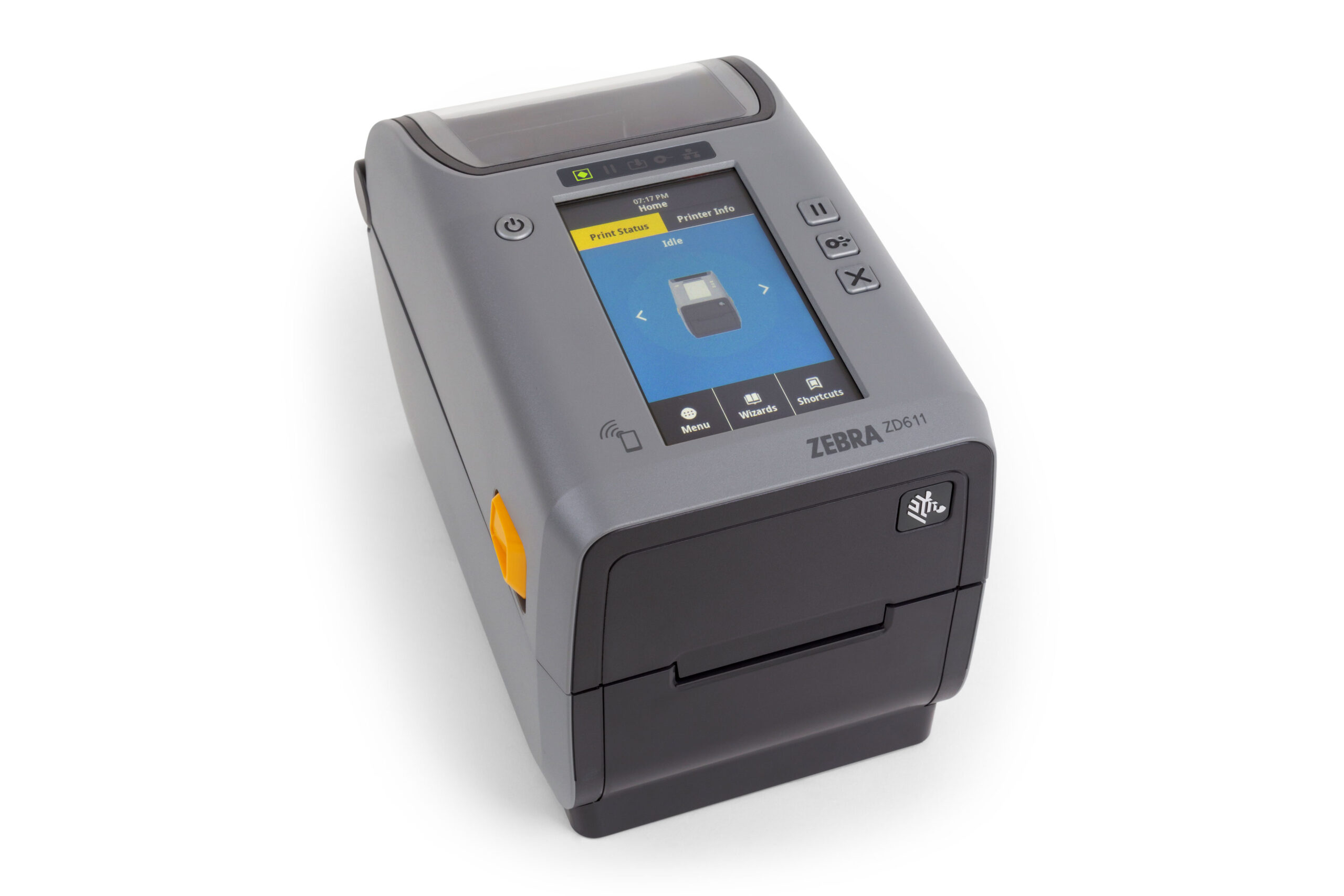

User Interface	4.3 in. full color touch LCD (standard on healthcare models and ZD611 RFID and thermal transfer models)
Media Handling	Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable)
Communications	Factory installed: dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (MIMO) Field installable: dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (SISO) Factory installed or field installable: dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.2 Field installable Serial RS-232 auto-sensing (ZD611 only, standard on ZD621)
Battery	Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Carrying Case¹	Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application
Keyboard Display Unit	ZKDU keyboard display unit for stand-alone printing solution
Mounting Adapter Bracket	Enable printer to be mounted in same location as LP/TLP2824 Plus printer
Media Locking Cabinet	Mechanical lock with 2 keys; Kensington® lock slot; available on ZD621 healthcare direct thermal model only
Enclosed Power Supply	Attached power supply accessory for cord-free installation of the ZD621 only

Ask a Question

Category:Desktop Printers

The 2-inch ZD611 delivers next-generation technology, industry-leading features and unmatched security for years of superior printing. With a new architecture for added performance, optimal field-installable media handling designs and wireless communication. Select models feature a full-color touch display, or choose linerless model to reduce waste and improve productivity.

Printing Technology	Direct Thermal	Thermal Transfer Roll
Print Resolution	203 dpi (8 dot/mm)	300 dpi (12 dot/mm)
Connectivity	Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional)	Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional)	Bluetooth Low Energy
Media Handling Options	Dispenser/Peeler (optional)	Cutter (optional)
