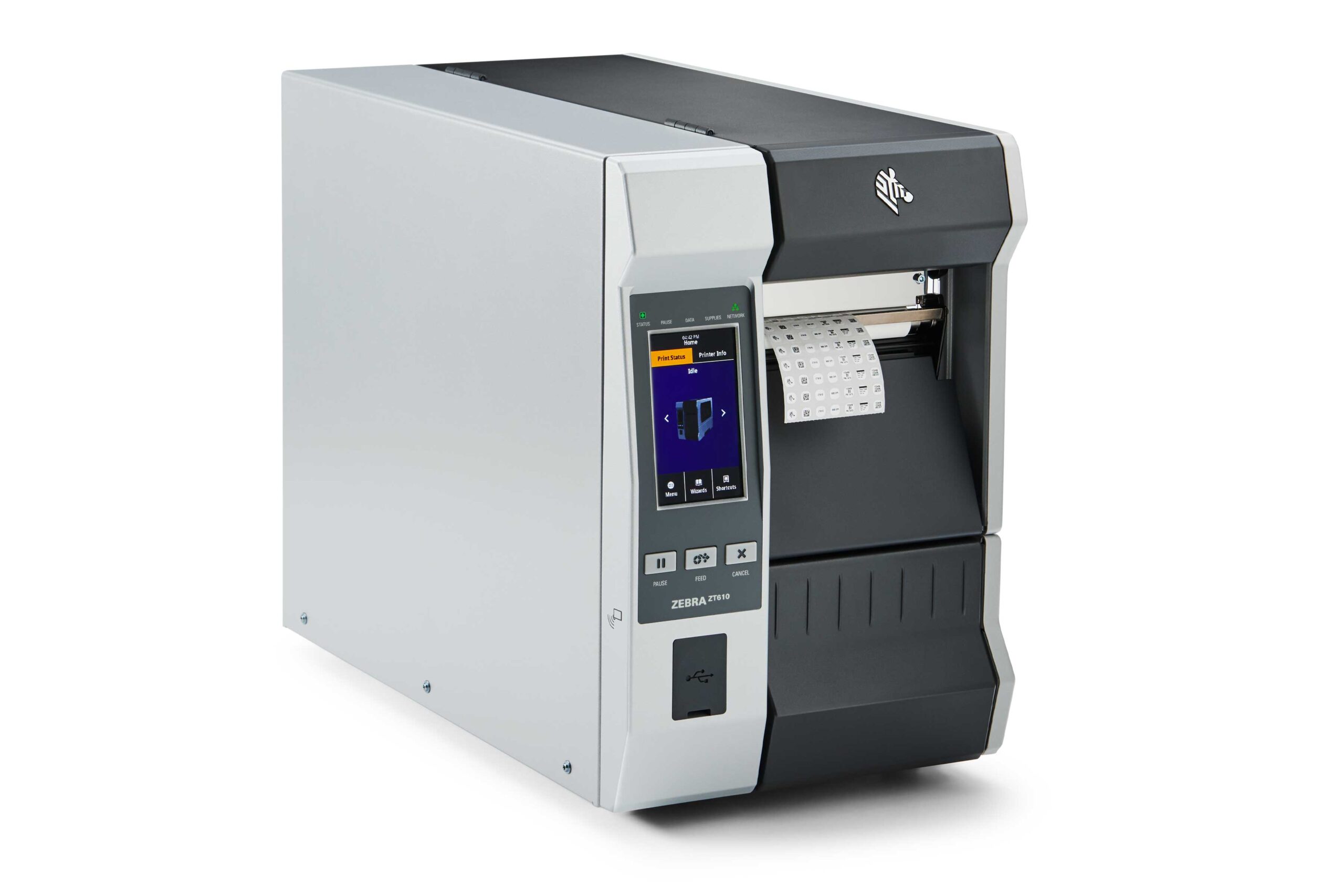

Zebra ZT610 Micro Label Printer high performance barcode printer, Bluetooth Connectivity

In stock

High-precision for very small labels

Key Features
Print Technology: Thermal Transfer/Direct Thermal
Print Speed: 6 ips (152 mm/s)
Print Resolution: 600 dpi (24 dot/mm) Micro Label
Connectivity: Bluetooth 4.1

Specifications

Standard Features

• Print Methods: Thermal transfer and direct thermal printing

• Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

• Side-loading supplies path for simplified media and ribbon loading

• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

• Communications: USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth®

• Brightly lit, 4.3 in. full-color touch display with clear navigation and immediate status visibility and support

Physical Characteristics

Dimensions (closed)	ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H 505 mm L x 268.2 mm W x 395.68 mm H ZT620: 19.88 in. L x 13.44 in. W x 15.58 in. H 505 mm L x 341.45 mm W x 395.68 mm H
Weight	ZT610: 50 lbs/22.7 kg ZT620: 57.4 lbs/26 kg

Printer Specifications

Operating System	Link-OS
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only) 600 dpi/24 dots per mm for micro label printing (optional for ZT610 only)
Memory	1 GB RAM memory 2 GB on-board linear Flash memory
Maximum Print Width	ZT610: 4.09 in./104 mm ZT620: 6.6 in./168 mm
Maximum Print Speed	ZT610: 14 ips/356 mm per second ZT620: 12 ips/305 mm per second
Media Sensors	Dual media sensors: transmissive and reflective
Maximum Continuous Print Length	ZT610: 203 dpi: 150 in./3810 mm 300 dpi: 100 in./2540 mm 600 dpi: 30 in./762 mm ZT620: 203 dpi: 80 in./2032 mm 300 dpi: 80 in./2032 mm

Media Characteristics

Media Width	ZT610: 0.79 in./20 mm to 4.5 in./114 mm ZT610 Micro Label Printer: 0.47 in./12 mm to 4.5 in./114 mm ZT620: 2.0 in./51 mm to 7.1 in./180 mm
Maximum Media Roll Size	8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness	0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length	1476 ft./450 m
Width	ZT610: 0.79 in./20 mm to 4.33 in./110 mm ZT620: 2.0 in./51 mm to 6.7 in./170 mm
Core	1.0 in./25.4 mm I.D.

Operating Characteristics

Operating Temperatures	Thermal transfer: 40ºF to 104ºF/5ºC to 40ºC Direct thermal: 32ºF to 104ºF/0ºC to 40ºC
Operating Humidity	20% to 85% non-condensing
Storage/Transportation Temperature	-22°F to 140°F/-30°C to 60°C
Storage Humidity	20% to 85% non-condensing
Electrical	Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR certified
Agency Approvals	IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Ask a Question

Category:Industrial Printers

Shelf and Product Labelling

For applications requiring extreme precision, the ZT610 600 dpi Micro Label Printer has specialized features to ensure accurate printing of labels as small as 3mm and improved integration with automated labelling systems.
