Create beautiful edge-to-edge card designs with graphics, text, barcodes and images using CardStudio design software. Then, produce those cards on demand with the 300 dpi printing capability of the ZC10L.
Commonly Used For
Ticketing
Access Control

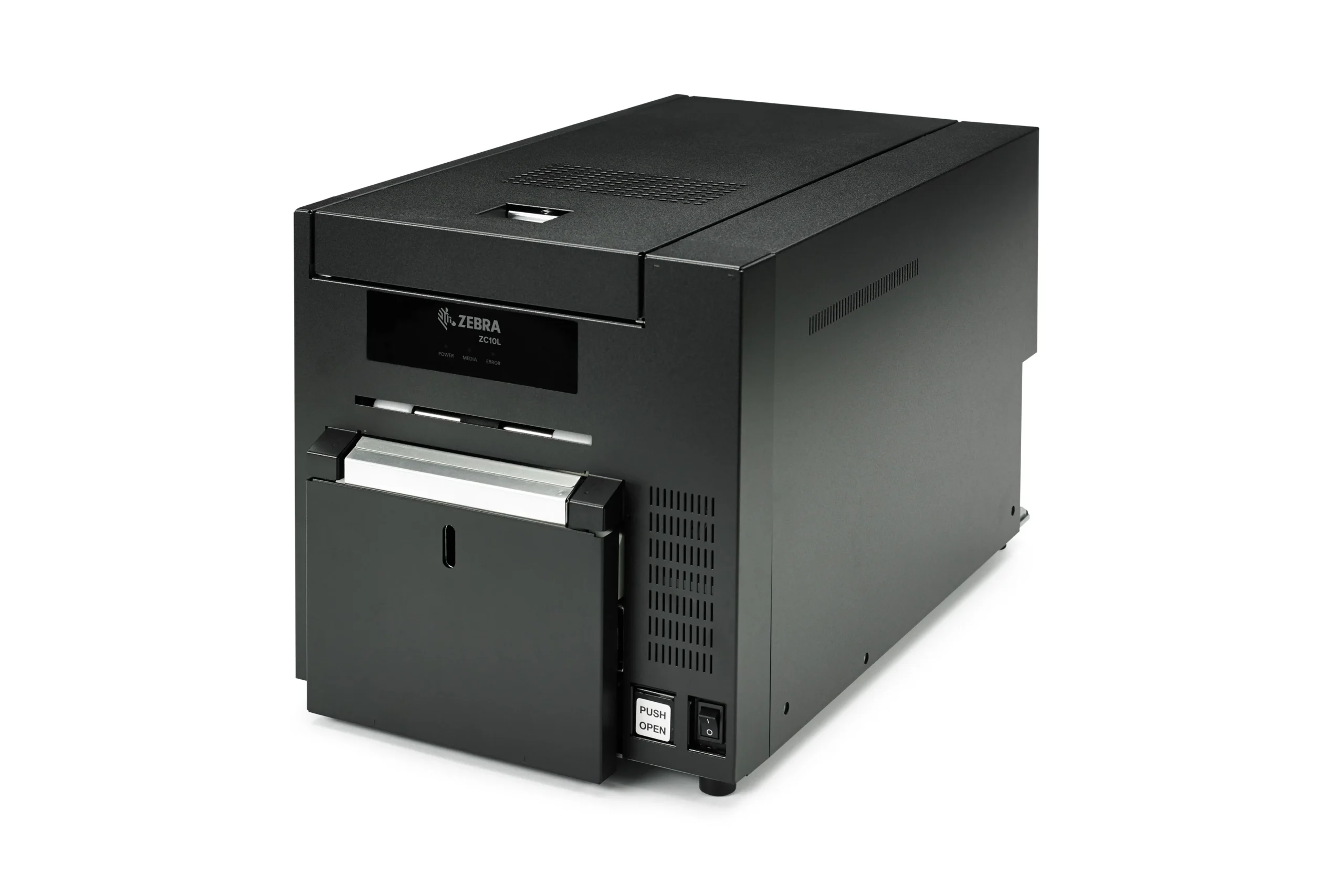

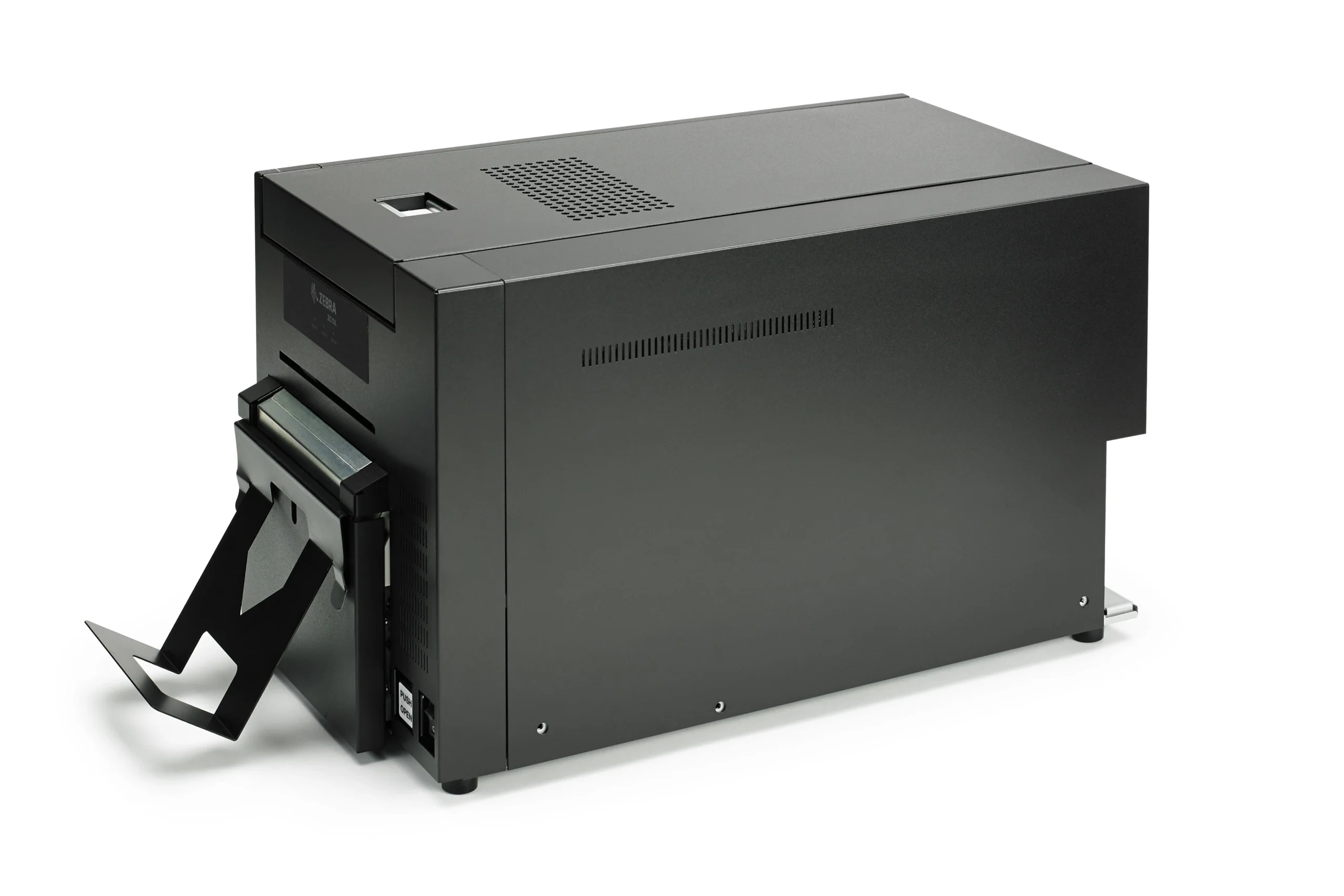

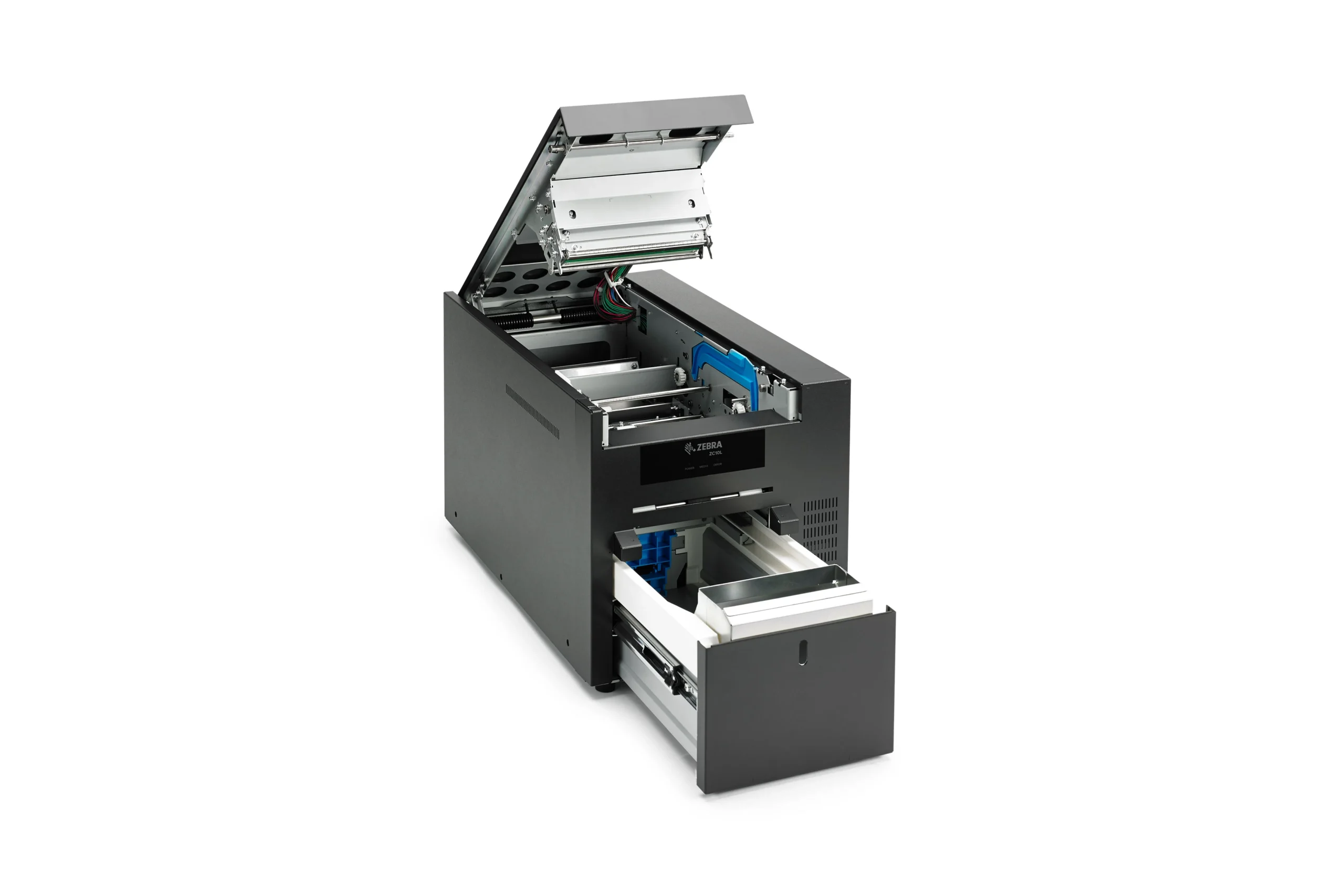

Zebra ZC10L Large Formatted Card and Badge Printer
In stock
Print stunning, edge-to-edge, oversized custom cards and badges in full color in one pass.
In the Box
Printer
Power cord
USB Cable
Output tray
Cleaning roller
Specifications
Printing
| • Direct to card — dye diffusion • Full color or monochrome printing • Single-sided printing • Max print speed single-side color 195 cph* • Max print speed single-sided K mono 360-410 cph* • Photo-quality images • Edge-to-edge printing |
Standard Features
| • USB connectivity • 200 card (24 mil) capacity feeder • 70 card capacity output hopper • Multi-status LED operator display • 300 dpi print resolution • 64 MB memory standard • Zebra CardStudio 2.0 card design and issuance software (30 day trial) • Microsoft™ Windows™ drivers |
Physical Characteristics
| Height | 11.42 in./290 mm |
| Width | 10.94 in./278 mm |
| Depth | 19.09 in./485 mm |
| Weight (Printer Only) | 46.3 lbs./21 kg |
Software
| Supported OS and SW | Windows 7, Windows 8.1 and Windows 10 CardStudio 2.0 Card Design and Issuance Software — single user license key |
| Driver Features | Auto sensing of ribbon type Remaining card count on ribbon |
User Environment
| Operating Temp. | 50° F / 10° C to 95° F / 35° C |
| Storage Temp. | -4° F / -20° C to 131° F / 55° C |
| Operating Humidity | 20% to 80% inclusive, non-condensing |
| Storage Humidity | 10% to 95% inclusive, non-condensing |
| Shipping Temperature | -40° F / -40° C to 140° F / 60° C |
| Shipping Humidity | 10% to 95% inclusive, non-condensing |
Card Specifications
| Card Thickness | 24 mil |
| Card Size | 5.5 in. x 3.46 in. (140 mm x 88 mm) |
| Card Material | PVC |
| Smart Cards | HF, UHF, Dual HF/UHF |
Supplies

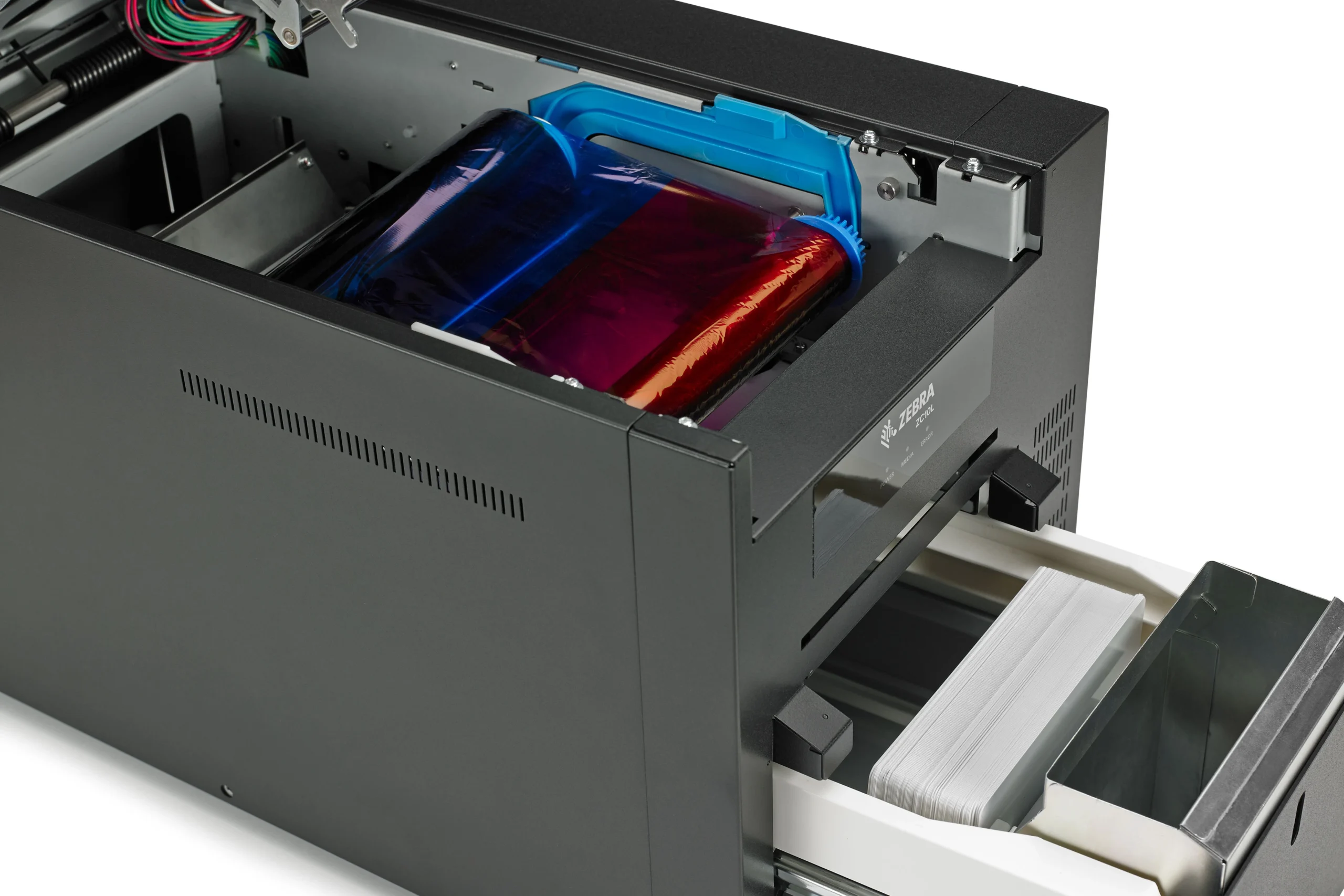

| Intelligent technology uses RFID tags to authenticate and automate color ribbon and monochrome ribbon. |
| Ribbon:Â YMCO 4-panel: 400 images/roll Monochrome black: 2000 images/roll |
Communications Interfaces
| USB 2.0 USB supports plug-and-play printer identification 10/100 Ethernet connectivity (External Print Server Option) |
Electrical
| Auto-switching AC power 90V~264V AC and 48 – 62 Hz |
